Used Equipment For Sale

Forklifts Straight Mast

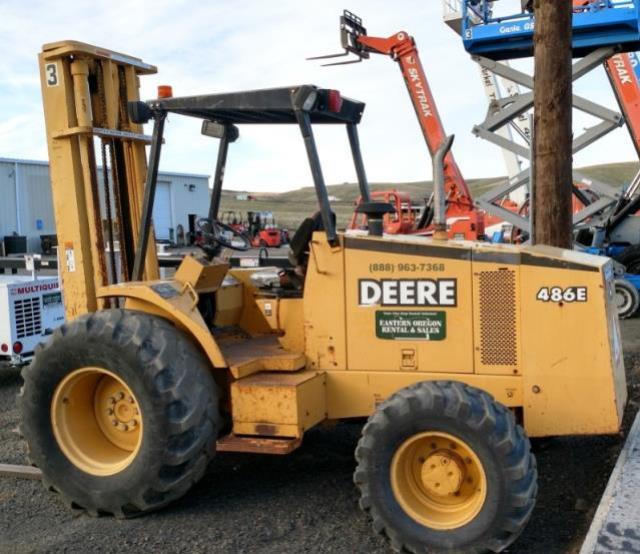

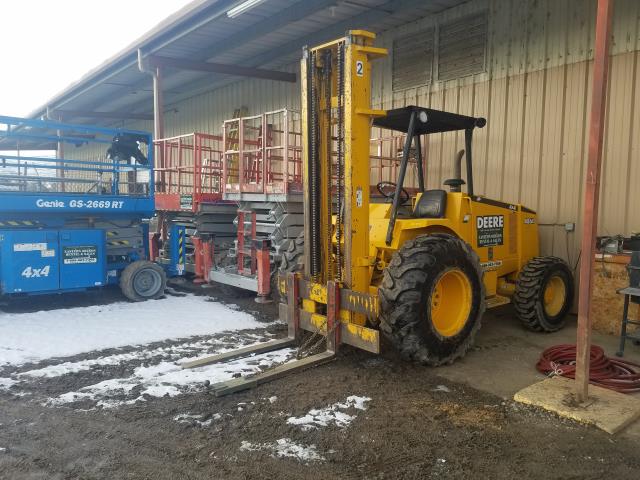

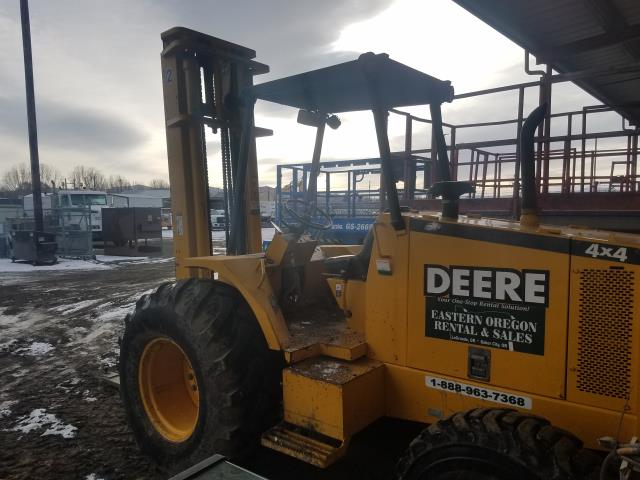

Forklift 6000# 22' JD 486E #2


Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer Link: <Click Here>

Manufacturer: John Deere

Year: 1999

Hours: 5719

Model: 486E

Additional Information

OPERATING INFO
Maximum lift capacity at ground level: 6000 lbs
Overall height, mast raised:
14 ft. mast: 200 in.
21 ft. mast: 284 in.
Overall height, mast closed
14 ft mast: 120 in.
21 ft mast: 122 in.
Wheelbase (Four-wheel-drive) 83.3 in.
Overall length 6,000-lb.: 200 in.
Reach: 36.2 in.
Degrees tilt, forward: 30 degrees
Degrees tilt, rearward: 10 degrees
Ground clearance: 15 in.
Obstacle clearance, mast: 10.5 in.
Tire static radius: 23.7 in.
ENGINE:
Type: John Deere 4045D Naturally Aspirated
Rated power @ 2,200 rpm: 73 SAE net hp / 78 SAE gross hp
Cylinders: 4
Displacement: 276 cu. in.
Fuel consumption, typical: 1.1 to 1.9 gal./hr.
Torque rise, net: 26%
Maximum net torque: 220 lb.-ft.
Lubrication: pressure system with spin-on filter and cooler
Air cleaner: dual stage, dry type w/ safety element, evacuator valve, and prescreener
Electrical system: 12 volt with 65-amp alternator
Cooling fan: sucker type, 1:1 speed ratio
TRANSMISSION
Type: four-speed, helical-cut gear, collar shift transmission synchronized in all gears with hydraulic reverser
Torque converter: single stage, dual phase with 2.63:1 stall ratio, 11 in. (280 mm) diameter
Travel speeds (maximum):
Forward / Reverse
Gear 1: 4.3 mph / 3.9 mph
Gear 2: 7.1 mph / 6.4 mph
Gear 3: 17.2 mph / 15.4 mph
Gear 4: 24.2 mph / 21.6 mph
CAPACITIES (FILL/CHANGE)
Fuel tank (with ground level fueling): 21.5 gal
Engine coolant: 3.9 gal
Engine oil including filter: 9 qt.
Torque converter and transmission: 15 qt
Hydraulic system: 12.5 gal
Rear axle: 3.5 gal
Mechanical-rear-wheel-drive axle: 2.3 gal
AXLE RATINGS (SAE J43)
Front: 17,340 lb
Rear: 12,610 lb

Consider these items to go with your rental:

* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.

Please call us for any questions on our forklift 6000 22 foot jd 486e 2 in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
