Compactor Plate w/ Tank MQ MVC88THW

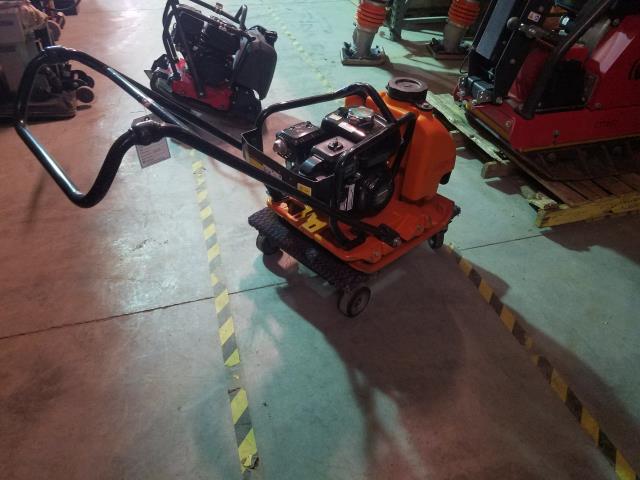

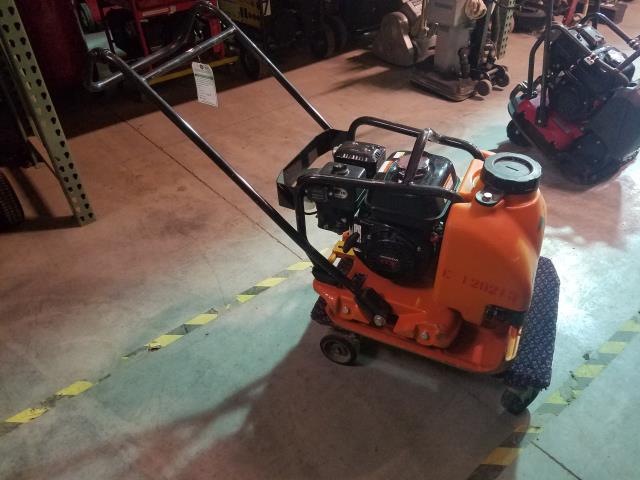

Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer Link: <Click Here>

Model: MVC88VTHW

Additional Information

3,372 cf, Honda GX160, 19.7 in. plate
The MVC88 now features a single cast baseplate and eccentric housing to enhance plate durability, serviceability and performance. An hour/tachometer to help measure runtime and engine rpm is now a standard feature. The plate is even easier to transport with the new wheel kit design. All this combined with an advanced anti-vibration handle make the MVC88 the newest and most technically advanced plate compactors on the market.
Features
Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
Single cast baseplate and eccentric housing lowers center of gravity and increases travel speed by 12% for greater productivity.
Hour/tachometer measures runtime and engine rpm.
Tubular steel roll bar protects engine components and provides central lifting point.
Sealed belt cover keeps dirt and rocks out extending belt life.
Open base plate design makes for easier removal of dirt and rock build-up.
Cog-tooth belt drive enables longer life compared to conventional V-belts.
Removable water tank can easily be refilled and is largest in class with 13.7 quart capacity.
Specs
Centrifugal Force: 3372 lbf / 15 kN
Exciter Speed: 6000 VPM
Plate Size: 19.7 x 20.7 in / 500 x 525 mm
Max Forward Speed: Per Min. 82 ft / 25 m
Fuel Consumption: Per Hour 0.31 gal 1.17 L
Water Tank Capacity: 13.7 qt / 12.96 L
Dimensions & Weights Overall Length: 41.75 in / 1060 mm
Overall Width: 19.75 in / 502 mm
Overall Height: 37 in / 940 mm
Operating Weight: 229 lb / 104 kg
