Aerial Boom Lifts

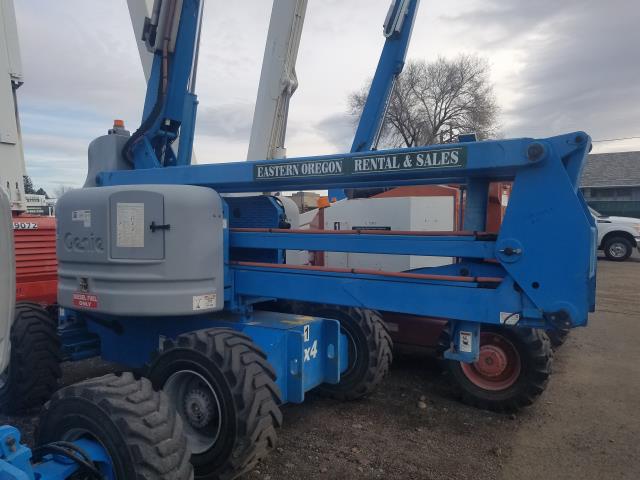

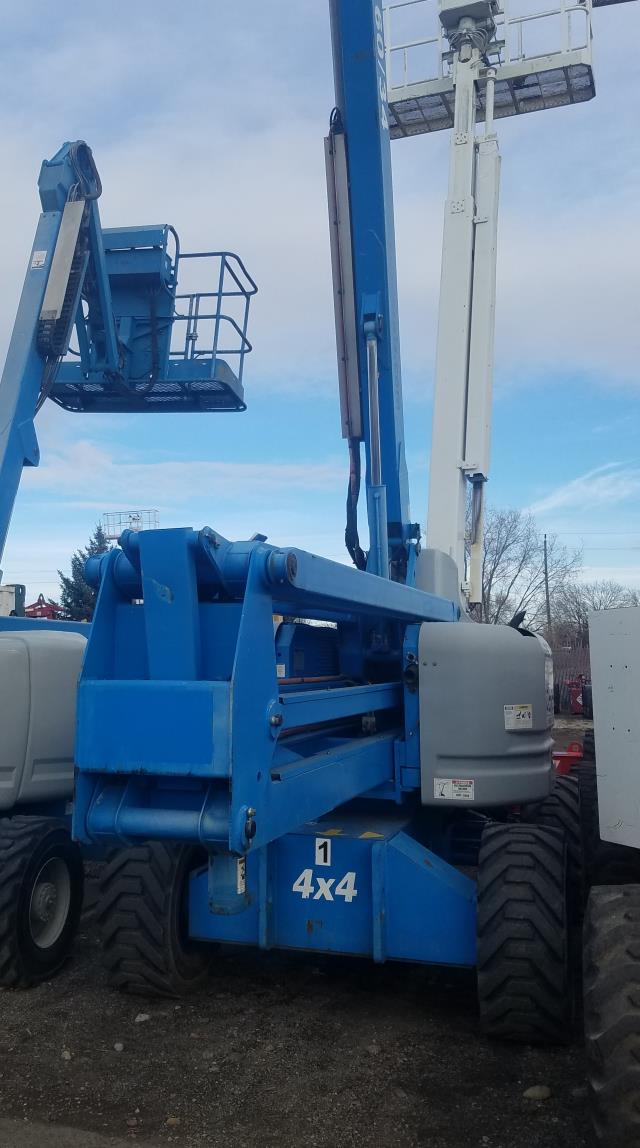

Work Platform Genie Z62/40 Diesel


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

MEASUREMENTS
Working height maximum* 66 feet
Platform height maximum 60 feet
Horizontal reach maximum 34 ft
Up and over clearance maximum 23 ft 6 in
Platform length 6 ft 6 in
Platform width 2 ft 9 in
Height - stowed 8 ft 1 in
Length - stowed 26 ft
Width 7 ft
Wheelbase 7 ft 11 in
Ground clearance - center 1 ft
PRODUCTIVITY
Lift capacity 500 lbs
Platform rotation 180
Vertical Jib rotation -
Turntable rotation 355 non-continuous
Turntable tailswing zero
Drive speed - stowed 5.0 mph
Drive speed - raised 0.68 mph
Gradeability - 4WD - stowed*** 45%
Turning radius - inside 11ft
Turning radius - outside 19 ft 9 in
Controls 12 V DC proportional
Tires 385/65/19.5
POWER
deutz diesel 56hp
Auxiliary air hose connection
Hydraulic tank capacity 45 gal
Fuel tank capacity 20 gal
WEIGHT
4X4 WD: 22,055 lbs

* Please call us for any questions on our work platform genie z62/40 diesel serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
