Used Equipment For Sale

Forklift 6000# 22' JD 486E #2

Key: FLS.6K22JD#B
Manufacturer: John Deere
Model: 486E
Sale Price: $14,995.00
Comments:

OPERATING INFO
Maximum lift capacity at ground level: 6000 lbs
Overall height, mast raised:
14 ft. mast: 200 in.
21 ft. mast: 284 in.
Overall height, mast closed
14 ft mast: 120 in.
21 ft mast: 122 in.
Wheelbase (Four-wheel-drive) 83.3 in.
Overall length 6,000-lb.: 200 in.
Reach: 36.2 in.
Degrees tilt, forward: 30 degrees
Degrees tilt, rearward: 10 degrees
Ground clearance: 15 in.
Obstacle clearance, mast: 10.5 in.
Tire static radius: 23.7 in.
ENGINE:
Type: John Deere 4045D Naturally Aspirated
Rated power @ 2,200 rpm: 73 SAE net hp / 78 SAE gross hp
Cylinders: 4
Displacement: 276 cu. in.
Fuel consumption, typical: 1.1 to 1.9 gal./hr.
Torque rise, net: 26%
Maximum net torque: 220 lb.-ft.
Lubrication: pressure system with spin-on filter and cooler
Air cleaner: dual stage, dry type w/ safety element, evacuator valve, and prescreener
Electrical system: 12 volt with 65-amp alternator
Cooling fan: sucker type, 1:1 speed ratio
TRANSMISSION
Type: four-speed, helical-cut gear, collar shift transmission synchronized in all gears with hydraulic reverser
Torque converter: single stage, dual phase with 2.63:1 stall ratio, 11 in. (280 mm) diameter
Travel speeds (maximum):
Forward / Reverse
Gear 1: 4.3 mph / 3.9 mph
Gear 2: 7.1 mph / 6.4 mph
Gear 3: 17.2 mph / 15.4 mph
Gear 4: 24.2 mph / 21.6 mph
CAPACITIES (FILL/CHANGE)
Fuel tank (with ground level fueling): 21.5 gal
Engine coolant: 3.9 gal
Engine oil including filter: 9 qt.
Torque converter and transmission: 15 qt
Hydraulic system: 12.5 gal
Rear axle: 3.5 gal
Mechanical-rear-wheel-drive axle: 2.3 gal
AXLE RATINGS (SAE J43)
Front: 17,340 lb
Rear: 12,610 lb

Where to find Forklift 6000 22 JD 486E 2 in Baker City

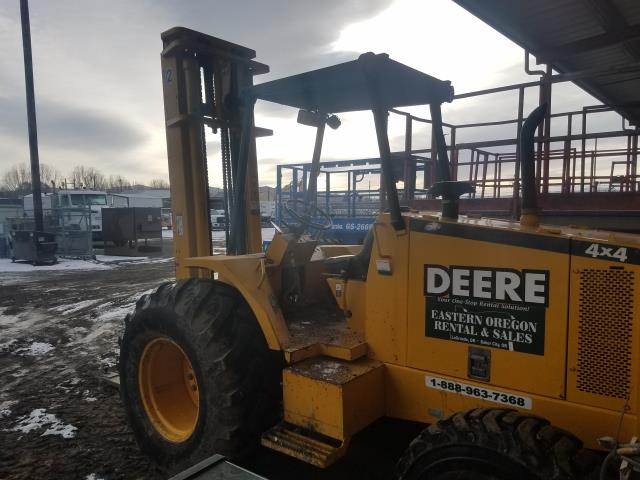

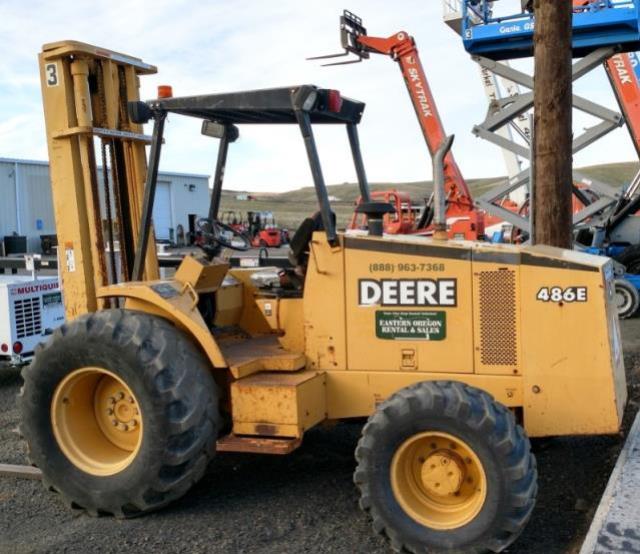

Image for reference only
Actual item may look different
Click on image for larger view

Click on above thumbnails for alternate view

* Prices are subject to change.
