Lawn Garden & Utility

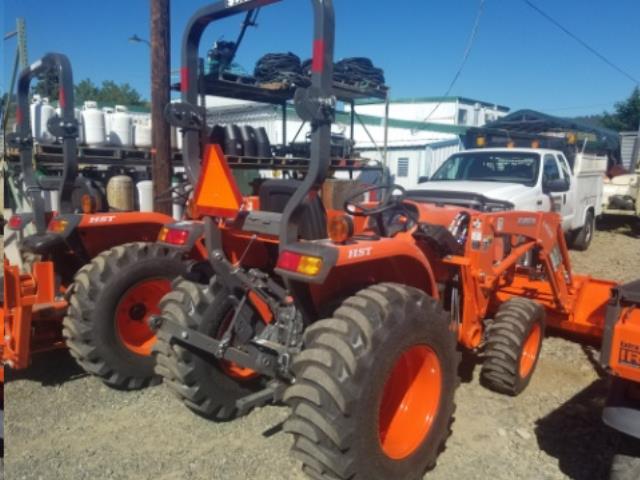

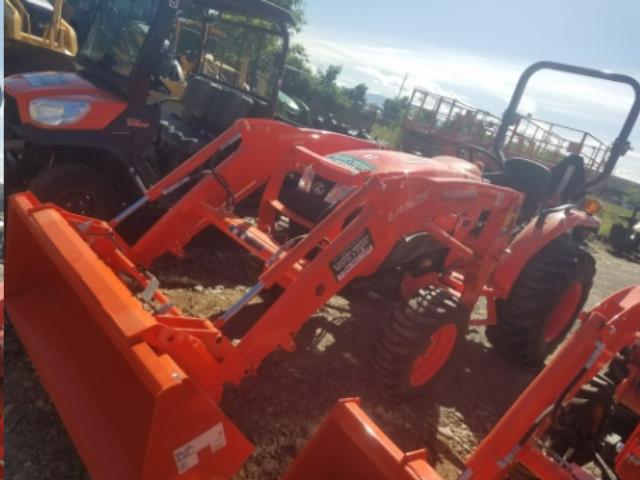

Tractor Kubota L3901


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

Kubota 1.8L 3-cyl Diesel
Capacity:
Fuel: 11.1 gal [42.0 L]
3-Point Hitch:
Rear Type: I
Control: position control
Rear lift (at ends): 1985 lbs [900 kg]
Rear lift (at 24"/610mm): 1433 lbs [650 kg]
Power Take-off (PTO):
Rear PTO: live
Clutch: dual stage dry disc
Rear RPM: 540 (1.375)
Dimensions & Tires:
Wheelbase: 63.3 inches [160 cm]
Weight: 2590 to 2778 pounds
Front tire: 5.00-15
2WD Rear tire: 11.2-24
full dimensions and tires ...
Kubota L3901 Power:
Engine (gross): 37.5 hp [28.0 kW]
Engine (net): 36.3 hp [27.1 kW]
Gear PTO (claimed): 32.1 hp [23.9 kW]
Hydro PTO (claimed): 30.6 hp [22.8 kW]
Mechanical:
Chassis: 4x2 2WD*
4x4 MFWD 4WD
Steering: power
Brakes: mechanical wet disc
Cab: Two-post folding ROPS.
Hydraulics:
Type: open center
Pressure: 2347 psi [161.8 bar]
Pump flow: 6.3 gpm [23.8 lpm]
Steering flow: 3.8 gpm [14.4 lpm]
Electrical:
Ground: negative
Charging system: alternator
Charging amps: 40
Charging volts: 12
Battery:
Number: 1
Cold-cranking amps: 580
Volts: 12

* Please call us for any questions on our tractor kubota l3901 serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
