Earth-Loaders & Skid Steers

Loader Skip JD210LE

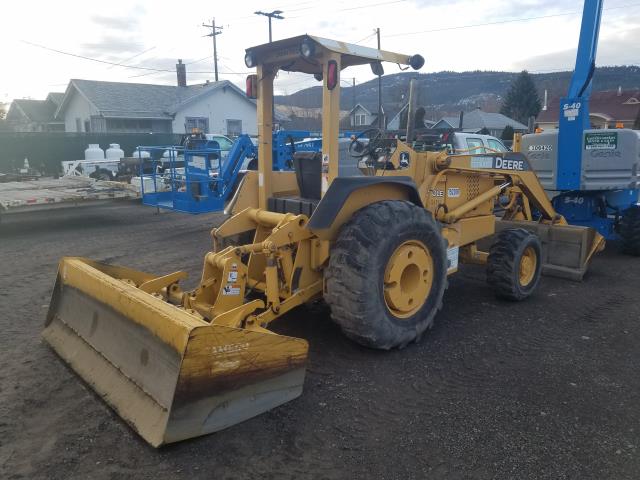

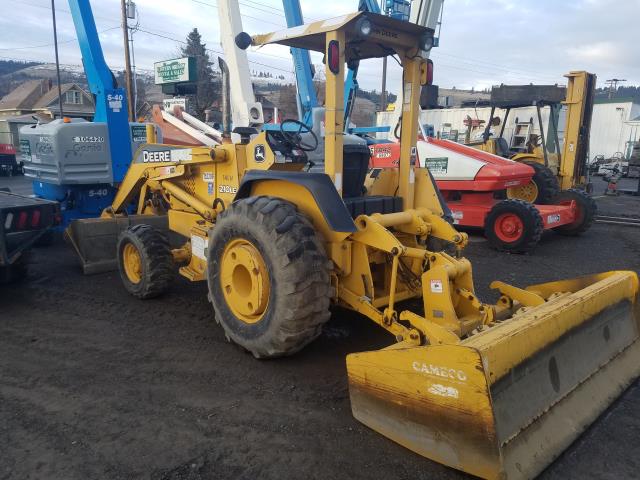

	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

ENGINE
Manufacturer/Model: John Deere/4045D
Net Power hp (kW) @ Rated rpm: 73 @ 2200
# Cylinders and Displacement cu in. (L): 4 - 276
ELECTRICAL Volts / Alternator amps 12 / 65
TRANSMISSION
Type: Synchromesh
Speed Ranges F/R: 4 x 4
Forward: 20.5
Reverse: 20.5
BRAKES
Type: Wet multiple disc
Actuation: Hydraulic/foot pedal
HYDRAULIC SYSTEM
Pump Type: Gear
Pump Flow gpm: 25
System Pressure psi: 2750
MFWD Standard/ Optional/ None: Standard
Axle Oscillation deg. 22
LOADER AND BUCKET
SAE Heaped Capacity, cu yd: 1.00
Loader Bucket width, in.: 86"
Breakout force lb: 7,900
Lift Capacity to Full Height, lb: 5,280
Dump Clearance @ 45 deg., ft & in.: 8' 4.6"
Dump Reach, in.: 34.4"
Bucket Hinge Pin Max. Hgt, ft & in.: 11' 4.7"
Coupler (Mechanical, Hydraulic) Opt
THREE POINT HITCH
Lift Capacity @ Lift Points lb: 6,870
Lift Capacity @ 24 in. Behind lb: 3,790
POWER TAKE OFF, Std/Opt Opt
PTO rated speed, rpm: 540
DIMENSIONS
Transport Height ft & in.: 8' 1.6"
Transport Length ft & in.: 17' 2"
Transport Width ft & in.: 7' 2"
CAPACITIES
Fuel Tank gal: 26
Hydraulic Reservoir gal: Not published
OPERATING WT w/MFWD & 3 pt Hitch lb: 10,405

* Please call us for any questions on our loader skip jd210le serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
