Lighting Equipment

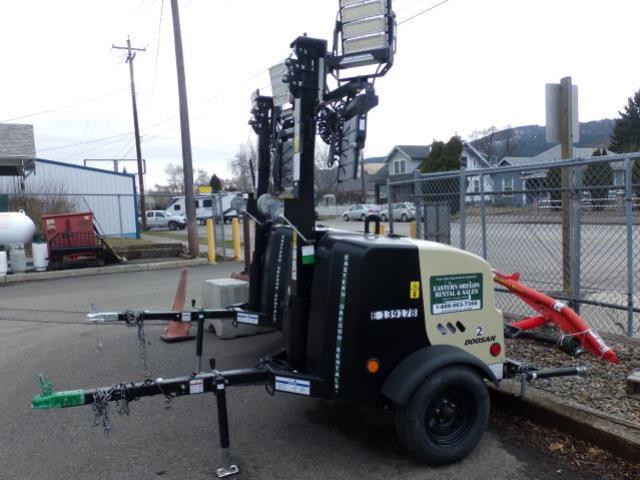

Light Tower 4 Lite Doosan RL4 LED


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

LCV6WKUB-60Hz-T4F Light Tower
ENGINE
MakeKubota D1005
Emissions Tier LevelTier 4 Final
Number of Cylinders / Displacement cu in (L)3 / 61.1 (1.001)
Power @ Rated Speed - bhp (kW)13.1 (9.76) @ 1800 RPM
Cooling SystemWater / Glycol
DC System Voltage / Battery Capacity12 VDC / 520 CCA
Fuel Type#2 Ultra-Low Sulfur Diesel
Usable Fuel Capacity gal (L)52.4 (198.4)
Runtime Full Load - hrs105
Runtime with 4 Metal Halide Lights - hrs119
Runtime with 4 LED Lights - hrs210
GENERATOR
Prime Power Rating, 1.0 PF - kW6
Available AC Voltage - Single Phase - V120/240
Available Frequency - Hz60
RECEPTACLES (with individual circuit breaker protection)
120V GFCI Duplex (NEMA 5-20R)1 20A
240V Twist lock (NEMA L6-30R)1 25A*
230V IEC 309
230V EC 123-16
WEIGHT
Shipping Weight - lb (kg)1309 (595)
Operating Weight - lb (kg)1669 (758)
DIMENSIONS WITH RUNNING GEAR
Length (Drawbar Down) - in (mm)109 (2768)
Length (Drawbar Up) - in (mm)82 (2083)
Width (Standard) - in (mm)55 (1397)
Width (w/ Outriggers Deployed) - in (mm)121 (3084)
Track Width - in (mm)47.4 (1206)
Height (w/ Tower in Transport Position) - ft (m)8.4 (2.6)
Height (w/ Tower Deployed) - ft (m)23 (7).

* Please call us for any questions on our light tower 4 lite doosan rl4 led serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
