Generators

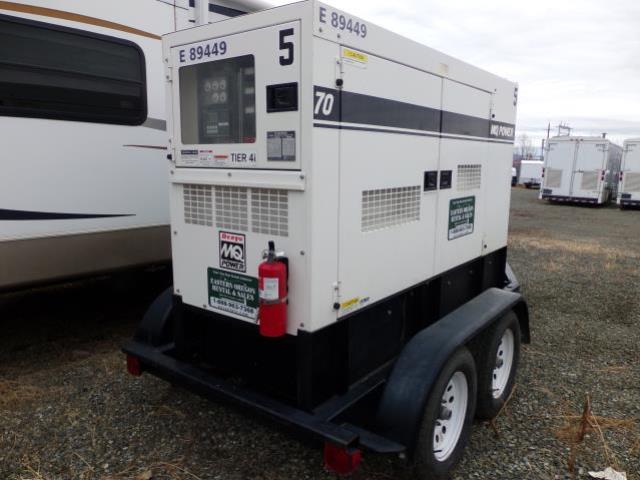

Generator Towable 70KVA


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

DIMENSIONS:
OVERALL LENGTH: 94"
OVERALL WIDTH: 35"
OVERALL HEIGHT: 55"
DRY WEIGHT: ~3219 LBS
SOUND LEVEL DB(A) - FULL LOAD @ 23': 67 DB(A)
REQUIRES 2" BALL FOR TOWING
ENGINE MAKE / MODEL: JD 4045TF150
PERFORMANCE DATA:
replace water pump 10,983 jim at job site
STANDBY OUTPUT: 61 KW , 77 KVA
PRIME OUTPUT: 56 KW , 70 KVA
GENERATOR RPM: 1800 RPMS
GENERATOR DESIGN: REVOLVING FIELD SELF-VENTILATED DIP-PROOF SINGLE BEARING
VOLTAGE REGULATION - (NO LOAD TO FULL LOAD): 1.5 %
POWER FACTOR: 0.8
ARMATURE CONNECTION: STAR WITH NEUTRAL / ZIGZAG
EXCITATION: BRUSHLESS WITH AVR
NO. POLES: 4 POLE
FREQUENCY: 60 HZ
AVAILABLE VOLTAGES - THREE PHASE:
208, 220, 240, 416, 440, 460, 480V SWITCHABLE VOLTS
AVAILABLE VOLTAGES - SINGLE PHASE:
120, 127, 139, 240, 254, 277 SWITCHABLE VOLTS
AMPS - SINGLE PHASE 120V:
155.5 (4 WIRE) 168 X 2 (ZIGZAG) AMPS
AMPS - SINGLE PHASE 240V:
77.8 (4 WIRE) 168 (ZIGZAG) AMPS
AMPS - THREE PHASE 240V:
168 AMPS
AMPS - THREE PHASE 480V:
84 AMPS
INSULATION: CLASS F

* Please call us for any questions on our generator towable 70kva serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
