Forklifts Extended Reach

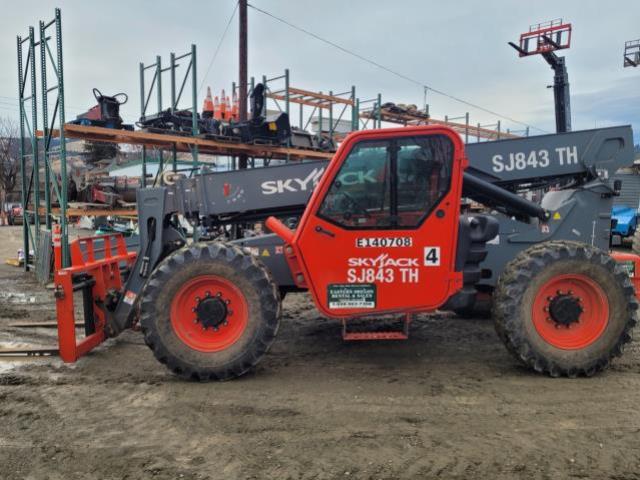

Forklift 8000# 43' Skyjack


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

Maximum Lift Capacity 8,000 lbs (3,629 kg)
Maximum Lift Height 43 4 (13.21 m)
Rated Lift Capacity @ Maximum Height 6,000 lbs (2,722 kg)
Maximum Forward Reach 28 7 (8.71 m)
Rated Lift Capacity @ Maximum Reach 1,900 lbs (862 kg)
O/A Length - Less Forks 19 6 (5.94 m)
Overall Height - Stowed 7 11 (2.41 m)
Overall Width 8 5 (2.56 m)
Ground Clearance 19 (48.3 cm)
Turning Radius - Outside 147 (3.73 m)
Operating Weight 21,980 lbs (9,970 kg)
Engine 74hp / 221 lb-ft Deutz TCD2.9L T4F
Max Travel Speed - Forward 17mph (27 km/h)
Drawbar Pull 17,750 lbs
Transmission Dana Powershift, 3 Speeds F/R
Axles Dana
Steering 3 mode (Front Wheel, 4 Wheel, Crab)
Tires Pneumatic 13 x 24 16PR Grip Lug
Fuel Tank Capacity 35.7 gallon (142 L)
Hydraulic Reservoir 43.85 gallon (166 L)

* Please call us for any questions on our forklift 8000 43 foot skyjack serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
