Forklifts Extended Reach

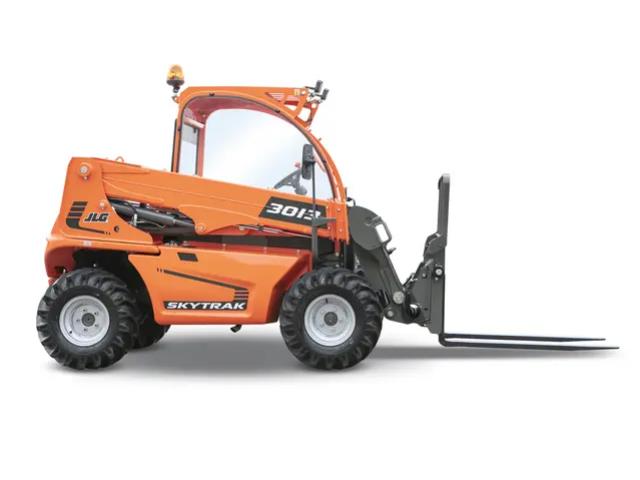

Forklift 3000# 13' SkyTrac


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity: for a period of
day(s) week(s) month(s)

Additional Information

Key Specifications
Max Lift Height:
13-ft 1-in
Maximum Reach:
7-ft 1-in
Rated Capacity:
2,700-lb
Rated Capacity 2,700 lb 1,225 kg
Maximum Lift Height 13 ft 1 in. 4 m
Load at Max Height 1,555 lb 705 kg
Maximum Forward Reach 7 ft 1 in. 2.2 m
Load at Max Reach 1,200 lb 544 kg
Lift Speed (boom retracted)
Up 10.9 sec
Down 7.7 sec
Boom Speed
Extended 7.5 sec
Retracted 4.5 sec
Top Travel Speed 10.5 mph 17 kph
Drawbar Pull (loaded) 2,623 lb 11.7 kN
Outside Turning Radius 117 in. 3 m
Operating Weight 5,280 lb 2,400 kg
Standard Specifications
Engine
Make and Model Kubota V-1505
No. of Cylinders 4
Displacement 91.2 cu in. 1.5 L
Gross Power Basic 24.8 hp 18.5 kW
Maximum Torque 68.3 lb-ft 92.6 Nm
Fuel Tank Capacity 14.5 gal 55 L
Transmission
Hydrostatic
1-speed forward and 1-speed reverse.
Axles
Limited Slip
Rear Oscillating
Four Wheel Drive
Brakes
Emergency brake spring applied and hydraulically released.
Service brake with inching.
Tires
Standard 11.0/65 x 12 Pneumatic Ag Tread Tires
Optional Foam-Filled Ag Tread Tires, Pneumatic Non-marking
Tires, Foam-Filled Non-marking Tires, Turf Tires

* Please call us for any questions on our forklift 3000 13 foot skytrac serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
