Earth-Track Hoes

Excavator Kobelco SK160LC


	Image for reference only Actual item may look different Click on image for larger view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

Fish Oil
Length: 28 ft. 5 in. (8.65 m)
Height: To Top of Boom: 9 ft. 9 in. (2.96 m)
To Top of Cab: 9 ft. 8 in. (2.95 m)
Width: With 800 mm Shoe: 8 ft. 6 in. (2.59 m)
Weight: 36,800 lbs. (16,700 kg)
Ground Clearance: Rear End: 3 ft. 5 in. (1.03 m)
Undercarriage: 18.9 in. (480 mm)
Fuel Tank Capacity: 74.2 gal. (281 l)
Hydraulic Tank Capacity: 42 gal. (159 l)
Track Width: 23.6 in. (600 mm)
Engine Make: Mitsubishi
Engine Model: 4D34-TEG
Fuel Type: Diesel
Bore x Stroke: 4.09 x 4.53 in. (104 x 115 mm)
Net Horsepower: 112 hp (82 kW)
Cooling: Water-cooled
Displacement: 238 ci (3.907 l)
Rated Speed: 3.7 mph (6.0 km/h)
Reserve Capacity: 37.8 gal. (143 l)
Travel Speed - Forward: 2.5 mph (4.0 km/h)
Arm Length: 10 ft. 2 in. (3.1 m)
Dig Depth: 21 ft. 7 in. (6.57 m)
Bucket Digging Force:
SAE: 24,900 lbs. (11,300 kg)
ISO: 28,000 lbs. (12,700 kg)
Dump Height:
Maximum: 22 ft. 10 in. (6.96 m)
Minimum: 6 ft. 9 in. (2.07 m)

Also check the following item(s) related to the above:

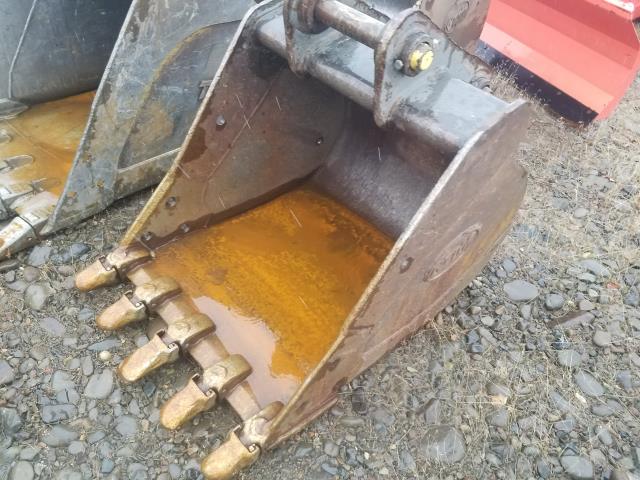

Bucket Kobelco 160 24" Dig

Bucket Kobelco 160 36" Dig

Bucket Kobelco 160 60" Cleanout

* Please call us for any questions on our excavator kobelco sk160lc serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
