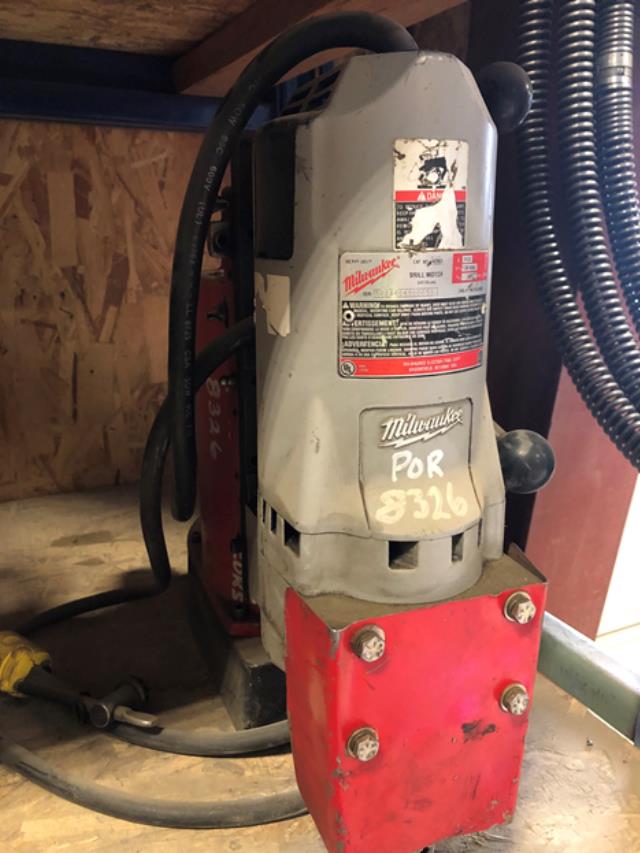

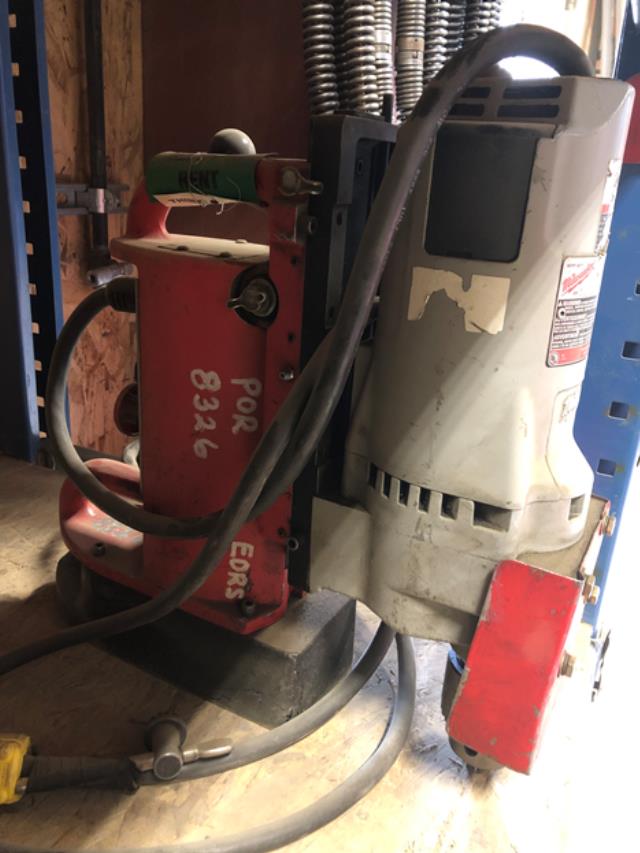

Drill ElectroMag Base/Motor #1


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Monthly: Call For Quote

Quantity:

Additional Information

The 4202 electromagnetic variable speed base features solid state electronic switching and a 9 in. drill travel.
Feedback speed control maintains speed and a motor/magnet lockout prevents de-mag during operation.
For use on any flat ferrous material, 1/2 in. and thicker.
Drill has Reverse
SPECIFICATIONS
Voltage: 120 AC
Drill Travel: 9 in.
Adjustable Base: No
Electronic Feedback: Yes
Cord Type: 9 ft. Fixed
Construction Type: Grounded
Height: 15 in.
Width: 4-1/4 in.
Length: 11 in.
Tool Weight: 41.0 lbs.
This heavy duty unit is built for production drilling and will take the toughest drilling jobs.
Model 4262-1 features an 11.5 amp motor with a 3/4 in. chuck. This unit has 350 rpm, geared low for maximum torque.
Use the larger 4203 adjustable base for this powerhouse, and no job is to large.
Voltage: 120 AC Only
Drill Capacity: 3/4 in.
Amps: 11.5
No Load Speed: 350 RPM
Tap Capacity: 1 in.-14
Drill Point Pressure: 1,630/1,670 lbs.
Chuck or Taper: Chuck
Tool Weight: 21.0 lbs.

* Please call us for any questions on our drill electromag base/motor 1 serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
