Compressors

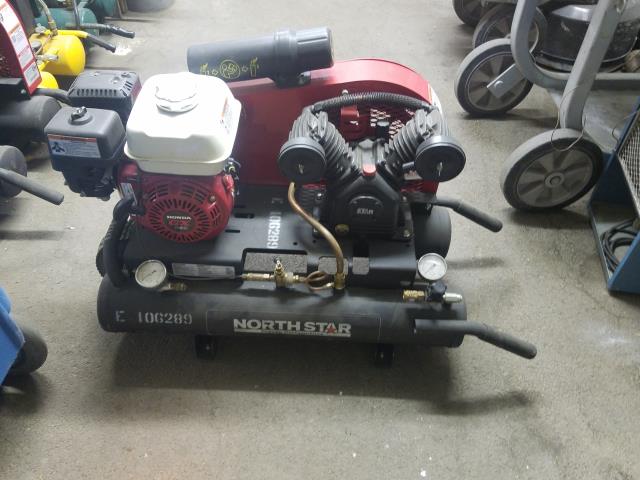

Compressor 13.7 CFM Gas 8Gal Twin Tnk #2


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: Call For Quote

Weekly: Call For Quote

Quantity:

Additional Information

Specs
Max. PSI: 130
CFM at 90 PSI: 13.7
CFM at 40 PSI: 14.6
Engine: Honda GX 160
Start Type: Recoil
Engine Displacement (cc): 163
Engine Idle Control: Yes
Stage: Single
Drive: Belt
Tank Type: Horizontal twin
Air Tank Size (gal.): 8
Portable or Stationary: Portable
Pump: Cast iron
Duty Cycle: 100
Air Outlet Size (in.): 1/4 quick connect
After-Cooler Included: Yes
Drain System: Manual
Low Oil Protection: Yes
Fuel Capacity (gal.): 0.825
Dimensions L x W x H (in.): 42 x 18 x 25
Features
Honda GX160 OHV engine with low oil shutdown
Full cast iron pump for long service life
V-style cylinder design for superior cooling
Pump head made of FC35 Grade cast iron
Floating-type Swedish steel valves deliver much longer valve life
Operates at slower RPM to run cooler and last longer
Low Vibration Technology (LVT) features a dynamically balanced pump for smooth operation and long life
One-piece cast iron crankcase has bearings on both ends of crankshaft for superior crankshaft support, not overhung crankshaft design
100% duty cycle
Delivers 13.7 CFM @ 90 PSI; 13.5 CFM @ 130 PSI
130 max. PSI
Oversized flywheel for cooler operation
Heavy cast iron flywheel provides extra momentum
Step-type piston rings ensure piston ring overlap for better compression
Sight glass for quick viewing of oil level
Replaceable crank journals and wrist pin journal/needle bearings
Two-piece connecting rods can be rebuilt for superior serviceability
High pressure piston wrist pins have needle bearings
Easy start lever on unloader valve isolates pump from tank pressure, so engine won't have to start under load
Durable steel belt guard
Liquid-filled pressure gauge
Pressure regulator to control outlet pressure
8-gallon horizontal twin tank
Built-in wheel with handles for easy portability

* Please call us for any questions on our compressor 13.7 cfm gas 8gal twin tnk 2 serving Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon.
