Earth-Dozers & Graders

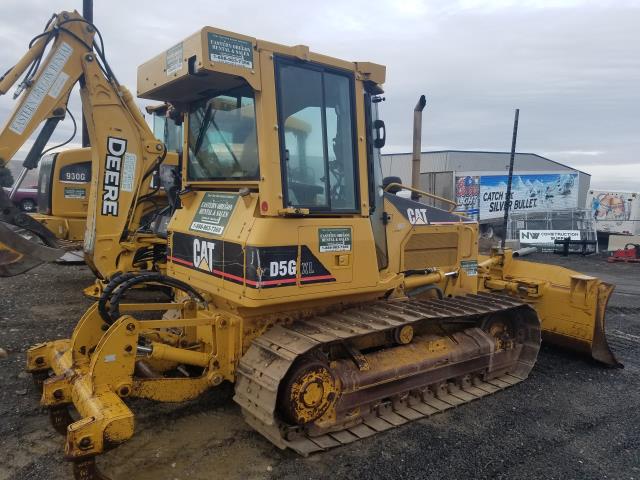

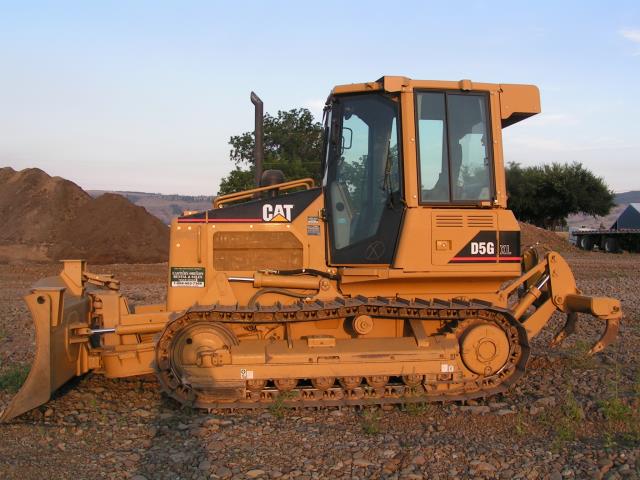

Dozer Cat D5G XL W/ Ripper
 Image for reference only   Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Model: D5G
Additional Information
- D5G combine the power of larger tractor with the versatility and maneuverability of a smaller machine in one package to meet a wide range of job applications. With comfortable operator station, excellent visibility and simple joystick control, the D3G, D4G and D5G are everything you expect from Caterpillar® and more!
- Engine
- Engine Model
- CAT C4.4 ACERT™
- Power - Net: 96 hp
- Power - Gross: 100 hp
- Displacement: 269 in³
- Caterpillar: 96 hp
- ISO 9249: 96 hp
- EEC 80/1269: 96 hp
- SAE J1349: 96 hp
- Bore: 4.13 in
- Stroke: 5 in
- Transmission
- Drive Pumps: 2
- Track motors: 2
- Relief valve settings: 6911 psi
- 47650 kPa
- Maximum travel speed - forward: 5.6 mph
- Maximum travel speed - reverse: 6.2 mph
- Weights
- Operating Weight - XL: 20741 lb
- Service Refill Capacities
- Fuel tank: 51.5 gal
- Crankcase and filter: 2.91 gal
- Shoe width - XL: 20 in
- Length of track on ground - XL: 91 in
- Track gauge - XL: 63 in
- Ground contact area - XL: 3652 in²
- Ground pressure - XL: 5.67 psi
- Ripper
- Type
- Parallelogram
- Number of Shanks: 3
- Maximum digging depth: 13.3 in
- Maximum reach at ground line: 21.9 in
- Maximum ground clearance under tip: 17.6 in
- Overall width: 67.3 in
- Height: 6.5 in
- Weight: 1222 lb
- Winch Weight: 1345 lb
- Winch Drive: Hydrostatic
- Control: Hydraulic
- Speed: Variable
- Winch length: 27.76 in
- Overall width: 29.2 in
- Drum diameter: 10 in
- Drum width: 10.8 in
- Throat clearance: 6.75 in
- Rope diameter - recommended: .63 in
- Drum capacity - recommended cable: 371 ft
- Maximum line pull - bare drum: 40000 lb
- Maximum line pull - full drum: 25000 lb
- Maximum line speed - bare drum: 131 ft/min
- Maximum line speed - full drum: 207 ft/min
- Standards
- ROPS
- SAE J397-OCT95, SAE J1040-MAY94, ISO 3471-94, ISO 3164-95
- FOPS
- SAE J231-JAN81, ISO 3449-92
- Blade
- Blade width - XL: 109.5 in
- Blade height - XL: 42.2 in
- Blade capacity - XL: 2.86 yd³
- Digging depth - XL: 23.1 in
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our dozer cat d5g xl w ripper rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
