Aerial Boom Lifts

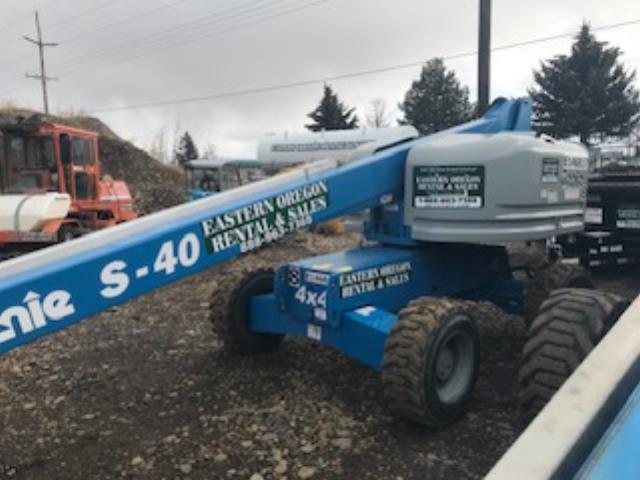

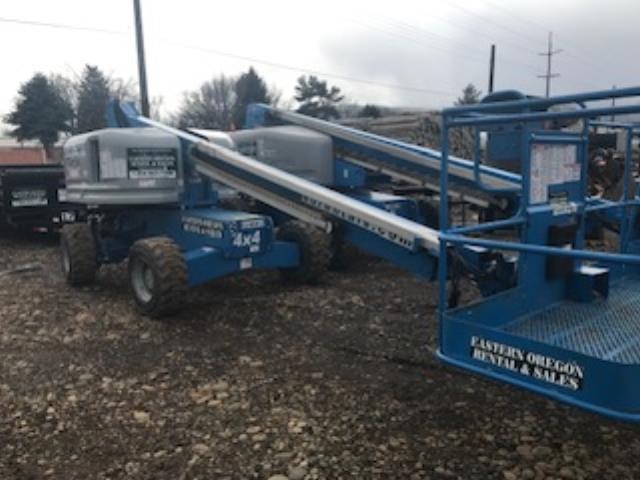

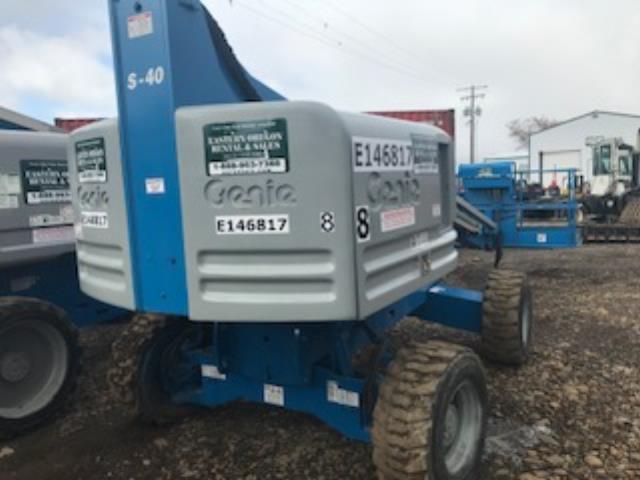

Work Platform Genie S40 #8
 Image for reference only   Click on above thumbnails for alternate view | |
Manufacturer Link: <Click Here>
Model: S-40-4WD-T4F
Daily: $315.00
Weekly: $1,095.00
Monthly: $2,495.00
Additional Information
- Brief Specs
- Working Height: 46 ft (14.20 m)
- Platform Height: 40 ft (12.20 m)
- Horizontal Reach: 31 ft 8 in (9.65 m)
- Lift Capacity: 500 lbs (227 kg)
- With Generator!
- Detailed Specs
- Measurements US/Metric
- Working height maximum: 46 ft / 14.19 m
- Platform height maximum: 40 ft / 12.19 m
- Horizontal reach maximum: 31 ft 8 in / 9.67 m
- Below ground reach: 3 ft 2 in / 0.97 m
- Platform length - 8 ft model: 3 ft / 0.91 m
- Platform length - 6 ft model: 2 ft 6 in / 0.76 m
- Platform width - 8 ft model: 8 ft / 2.44 m
- Platform width - 6 ft model: 6 ft / 1.83 m
- Height - stowed: 8 ft 2 in / 2.49 m
- Length - stowed: 24 ft 3 in / 7.39 m
- Width - standard tires: 7 ft 6 in / 2.30 m
- Wheelbase: 7 ft 3 in / 2.20 m
- Ground clearance - center: 1 ft .5 in / 0.32 m
- Productivity: US/Metric
- Lift capacity: 500 lbs 227 kg
- Platform rotation: 160° / 160°
- Turntable rotation: 360° continuous
- Turntable tailswing: 2 ft 10 in / 0.86 m
- Drive speed
- - stowed: 4.8 mph / 7.7 km/h
- - raised or extended: 0.68 mph / 1.1 km/h
- Gradeability
- - 4WD - stowed: 40%
- Turning radius
- - inside 6 ft 8 in / 2.0 m
- - outside 15 ft 8 in / 4.78 m
- Controls: 12 V DC proportional
- Tires - RT lug: 12-16.5 NHS
- Power
- Power source:
- 48 hp (35.79 kW) Deutz diesel T4f D2.9L4
- 48 hp (35.79 kW) Perkins diesel T4f 404F-22
- 60hp (44.74kW) Ford gas/LPG MSG425
- Auxiliary power unit: 12 V DC
- Hydraulic tank capacity: 45 gal / 170 L
- Fuel tank capacity: 20 gal / 76 L
- Weight
- Standard: 12,320 lbs / 5,588 kg
- Standards Compliance ANSI A92.5, CSA B354.4, EN 280, AS 1418.10
- MEASUREMENTS
- Working height maximum*: 46 ft
- Platform height maximum: 40 ft
- Horizontal reach maximum: 31 ft 8 in
- Below ground reach 3 ft 2 in .97 m 4 ft 11 in 1.5 m
- Platform length: 2 ft 6 in
- Platform width: 6 ft
- Height - stowed 8 ft 2 in
- Length - stowed 24 ft 3 in
- Width (with standard tires) 7 ft 6 in
- Wheelbase 7 ft 3 in
- Ground clearance - center 1 ft .5 in
- PRODUCTIVITY
- Lift capacity: 500 lbs
- Platform rotation 160°
- Turntable rotation: 360° continuous
- Turntable tailswing: 2 ft 10 in
- Drive speed - stowed: 4.8 mph
- Drive speed - raised or extended: 0.68 mph
- Gradeability - 4WD - stowed**: 40%
- Turning radius - inside: 6 ft 8 in
- Turning radius - outside: 15 ft 8 in
- Controls: 12 V DC proportional
- Tires - RT lug 12-16.5 NHS 12-16.5 NHS
- Tires - ribbed (2WD front) 12.5 L - 16 SL 12.5 L - 16 SL
- WEIGHT: 12,320 LBS
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our work platform genie s40 8 rentals in Baker City, La Grande, Pendleton OR, and Pasco WA, serving Eastern Oregon
