Drill ElectroMag Base/Motor #1
 Image for reference only   Click on above thumbnails for alternate view | |

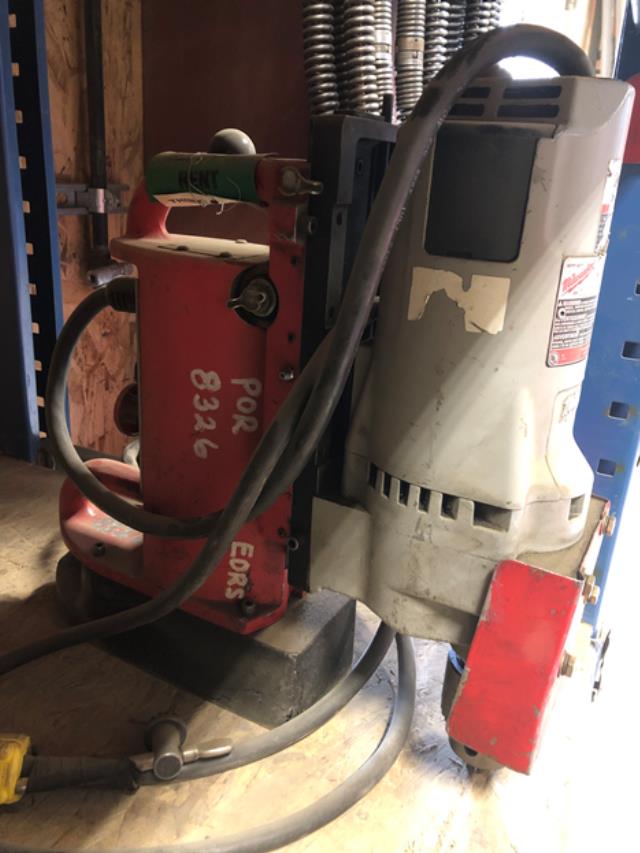

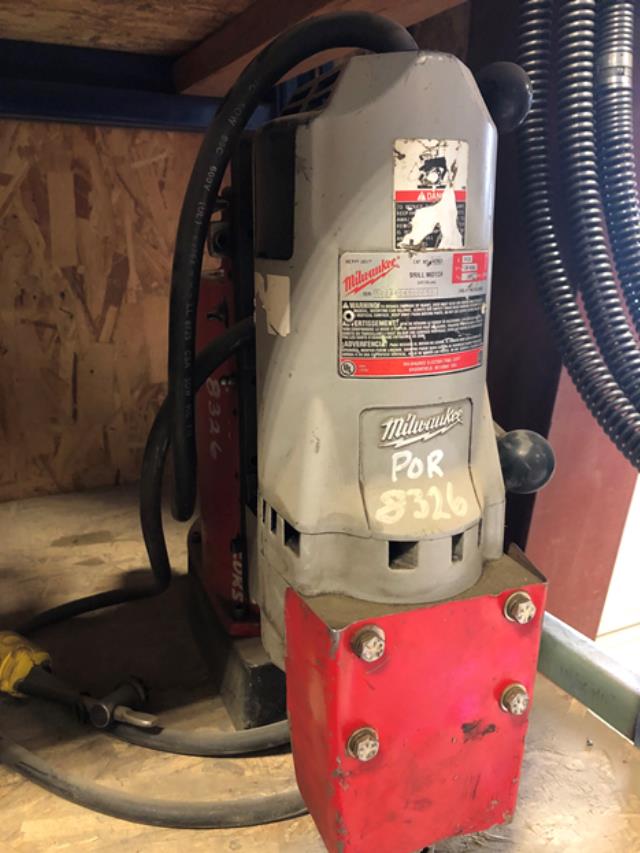

Model: 4202 / 4262-1
Additional Information
- The 4202 electromagnetic variable speed base features solid state electronic switching and a 9 in. drill travel.
- Feedback speed control maintains speed and a motor/magnet lockout prevents de-mag during operation.
- For use on any flat ferrous material, 1/2 in. and thicker.
- Drill has Reverse
- SPECIFICATIONS
- Voltage: 120 AC
- Drill Travel: 9 in.
- Adjustable Base: No
- Electronic Feedback: Yes
- Cord Type: 9 ft. Fixed
- Construction Type: Grounded
- Height: 15 in.
- Width: 4-1/4 in.
- Length: 11 in.
- Tool Weight: 41.0 lbs.
- This heavy duty unit is built for production drilling and will take the toughest drilling jobs.
- Model 4262-1 features an 11.5 amp motor with a 3/4 in. chuck. This unit has 350 rpm, geared low for maximum torque.
- Use the larger 4203 adjustable base for this powerhouse, and no job is to large.
- Voltage: 120 AC Only
- Drill Capacity: 3/4 in.
- Amps: 11.5
- No Load Speed: 350 RPM
- Tap Capacity: 1 in.-14
- Drill Point Pressure: 1,630/1,670 lbs.
- Chuck or Taper: Chuck
- Tool Weight: 21.0 lbs.
* Prices are subject to change. Delivery and other applicable fees are not included in this price estimate.
Please call us for any questions on our drill electromag base motor 1 rentals in Baker City, Island City, Pendleton OR, and Pasco WA, serving Eastern Oregon
